Beskrivelse

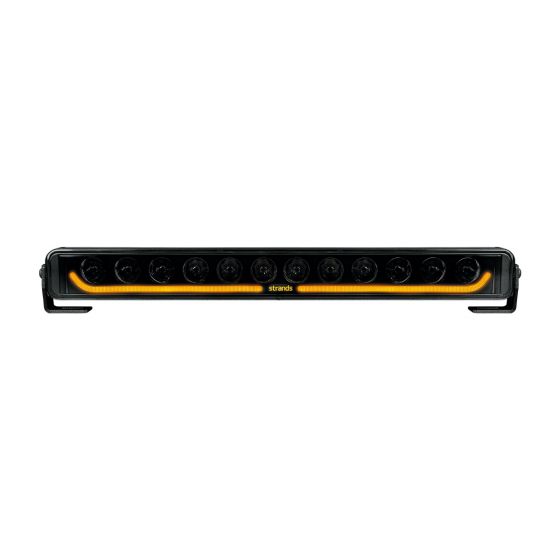

20'' LedBar

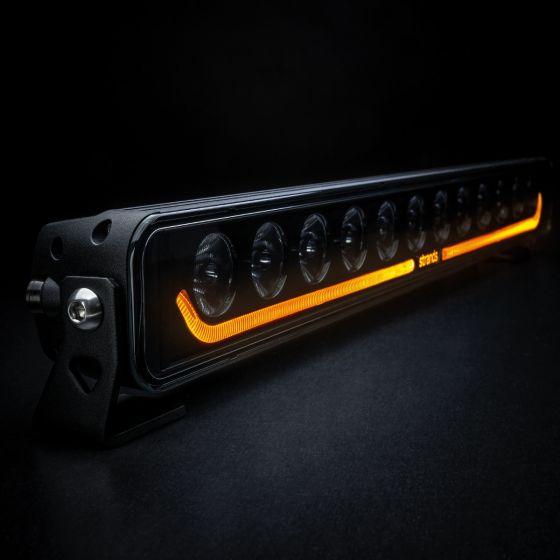

Ny LedBar med tøft design. Valgbart oransje eller hvit posisjons lys.
Kombinert lysbilde, både bredt og langt.
Med avansert TIR-optikk lyser denne over 500 meter.
Meget kompakt design med kun 55,5 mm dybde, og 58 mm høyde
1 lux på 458 meter og 9800 faktisk lumen. E-merket.
Spesifikasjoner:
Type of lamp LED
Type of LED LP
PCS LED´s Main beam: 12
Position light: 5
Voltage (V DC) 9-36V DC
Theoretical effect (w) 12V 120
Theoretical effect (w) 24V 120
Consumption (w) 12V Main beam: 98
Position light: 2
Consumption (w) 24V Main beam: 91
Position light: 2
Consumption specific function (w) 12V Main beam: 98
Position light: 2
Consumption specific function (w) 24V Main beam: 91
Position light: 2
Theoretical lumen 12000
Actual lumen 9800

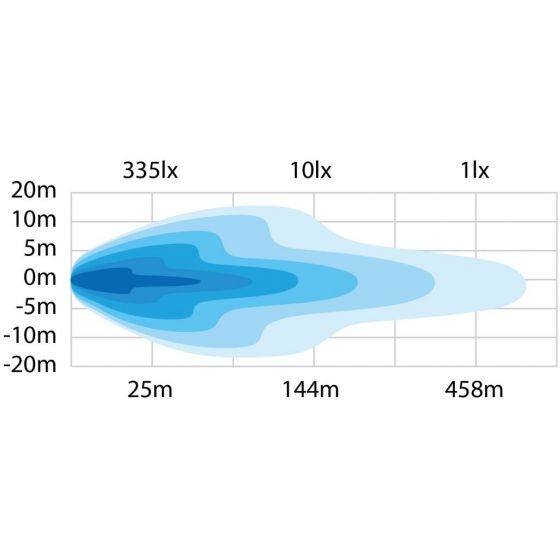

1 LUX @ m 458
Kelvin 6000
IP-class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Combo
Position light YES (White and Amber)
Connection DT4
Cable length (mm) 500

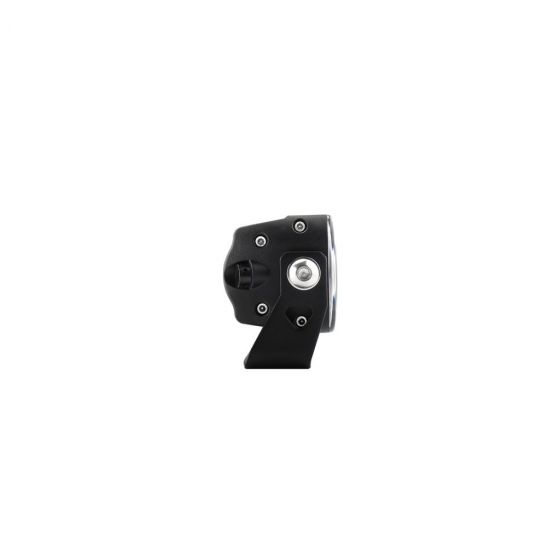

Material bracket Side bracket: Stainless steel (SUS 304)
Bottom bracket: Aluminum (AL6063)
Material housing/chassi Aluminum
Material lens Polycarbonate
Length (mm) 520
Depth (mm) 55.5
Height (mm) 58
Height including bracket (mm) 75
Operating temperature -40 – +60°C
ADR-approved No
E-approved Yes
According to regulation ECE R112 R7
Reference number 50
EMC ECE R10
